Looking for 520e schematic diagram.

[Vaklin]

Because some X cameras are available on the market for reasonable price, the full x connector wiring diagram will be welcome.
There was some paints but not systematic and with white spots. For example, video track to WiFi.



[WTFDproject]

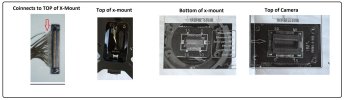

This is all I have. It might help for the circuit after the paths are divided into two rows.
I do not have the pin-out of the associated cable with all wires coming in from one side to a single row, or the pin-outs for the OFDM module connector.



[Vaklin]

pin 17 and pin 18 is possible to be for the camera interface?

USB?



[WTFDproject]

pin 17 and pin 18 is possible to be for the camera interface?

USB?

@h-elsner or someone else may know. I do not.
