Focusing an aftermarket lens

Joined
May 20, 2017
Messages
106
Reaction score
14
Age
45
Location
San Antonio
Hello again fine folks! I have another question about the typhoon H480. I installed a Carolina Dronz 82 Deg FOV (I think it was based on the peau lens as a "knockoff"). I had it dialed in nicely at one point, but over the years and a few light crashes later I am finding it to be out of focus more than I like. I never really found a good way to focus as the lower res output on the ST 16 screen was always slightly fuzzy. Can anyone give me some pointers or procedures to dial in the focus to the optimal point of focus? I used a stop sign and put it out about 20 feet and turned it till I noticed it focus and kept track of how far I turned it till out of focus, then back the opposite direction till it was out of focus again, then split the difference, much like I do on a manual focus camera, but without a clear hi res output I cant tell. Also hard to turn the lens without hand cutting into the shot. As I recall the german installation video stopped short of how to focus it properly. Any help/suggestions would be much appreciated.

Joined
May 20, 2017
Messages
106
Reaction score
14
Age
45
Location
San Antonio
The only way I know is to take a photo after you have it zeroed in. The adjust on direction, take another pic. Then the other direction and another pic

Thanks Steve-- I was hoping someone might have a better way, such a pain to take it out set it up adjust and take card out walk back into the house put it on my PC connected to my big screen, check it go back out, put card back in cgo3+, reboot drone etc over and over. I guess a better question would be how far out should a target be for best overall focus performance? If I could get it dialed in as much as possible first would be easier I would imagine. Problem is finding a focus guide big enough to see clearly from a distance at that resolution. I could barely make out a stop sign at 50' on the ST 16. If I connected st16 to my big screen tv in the house, how far away would a focusing target need to be?

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
Can anyone give me some pointers or procedures to dial in the focus to the optimal point of focus?
Use some big screen device to make this. Install CGO3 application. Focus it. I'm using an old Sony tablet and the results are very well. The last CGO3 application works only on newer devices (I mean Android devices, here the iPhone are used a few), so ask here for an older version, someone will help you.

Joined
May 20, 2017
Messages
106
Reaction score
14
Age
45
Location
San Antonio
Hey John! You and I spoke on the phone last week (eric in San Antonio). This is my old handle on this forum. I worked with "Esteves" (He is a trip BTW, love the guy) directly on the phone after I installed the lens a few years ago, I tried his method, but to be honest, I did not get the best results for my purposes. I need hyper-sharp images at 100+ Feet, I get that for artistic imagery a bit of soft is nice, but I am doing orthomosaic for construction and photogrammetry, sharp and clean lines is the rule in my best case. If I focus that closely it is not sharp enough and the farther-off images are blurry. It seems counterintuitive to focus 5-7 feet away when I need to capture items 100-125' away. I ended up originally just adjusting as best I could at about 25' and then adjusted my best guess 4 or 5 times till I felt it was right. I was hoping someone might have a different method or trick. I used a poster with large text last time at about 25', but this time all I have access to is a stop sign. I would think ideally I would use something like a billboard with big text while in the air, but that would be a huge pain to take off get to distance then land adjust take off again check and then land adjust takeoff check it etc etc etc. I need to see something to get the focus adjusted while looking at it. I guess I am stuck with my old method of trial and error. While I have you, do you guys have any smaller FOV (larger MM size, I remember something like 8.85 mm?) lenses? I am still getting a bit of distortion still off the carolina lens, way better than the stock lens, but if there are any options I would be interested. I think I saw the Peau lens in your inventory, do you have the larger MM lens they manufactured by any chance? I get the magnification and the FOV would be too large for most users, but I think it would work for my use.

Joined
May 20, 2017
Messages
106
Reaction score
14
Age
45
Location
San Antonio
I have a camera with an 8mm lens. Bought from Aliexpress. The image is distorted a little, but every lens gives some distortion.

Thanks Valkin for your help. I like the prices, thanks for the link. Don't suppose you have any straight on photos of maybe a city block or buildings from that lens you can share with me? I have a client currently doing cad drawing on top of the aerial photos, and even with the carolina dronz lens, there is enough Fisheye distortion that it is a request of the client to get as much distortion out as possible. I never really noticed until I saw the straight lines over the photos. Hoping to see a sample before I go to the trouble of changing the lens. It was not a fun project changing out the first lens TBH. Hoping Carolina the mount will be the same size and I can just unscrew it, but what are the odds (rhetorical question). I think the Carolina Dronz 3.77 82° FOV lens was the same thread as the Peau, but I am hoping john at Skins or Esteves (Is he still around at all?) can confirm. I should probably break down and buy something new, but my h 480 has been a work horse for me and I know the platform well.

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
Don't suppose you have any straight on photos of maybe a city block or buildings from that lens you can share with me?
Can do some pictures for you. Probably today afternoon and I'll share them in the topic.
I can just unscrew it, but what are the odds
Everything is not so simple. Probably the thread is glued. If you touch the sensor you have no more this sensor and so on.
I think the Carolina Dronz 3.77 82° FOV lens was the same thread as the Peau
Magic in the name is M12, this means 12X0.5 mm thread.
I should probably break down and buy something new
The new is not better...

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
that it is a request of the client to get as much distortion out as possible
The distortion level doesn't matter itself. The problem is with non-linear information in the picture with possible gaps. In this case, a longer focus (smaller FOV) gives more details on the same size of the matrix. Your client should prepare a compensation pixel to pixel table depends on the height over the terrain. This is a costly procedure, but efforts are worthy.

So, you can propose zero distortion, but you can't propose a known distortion. Let your client do the rest.

Joined
May 20, 2017
Messages
106
Reaction score
14
Age
45
Location
San Antonio
The distortion level doesn't matter itself. The problem is with non-linear information in the picture with possible gaps. In this case, a longer focus (smaller FOV) gives more details on the same size of the matrix. Your client should prepare a compensation pixel to pixel table depends on the height over the terrain. This is a costly procedure, but efforts are worthy.

So, you can propose zero distortion, but you can't propose a known distortion. Let your client do the rest.

The distortion level doesn't matter itself. The problem is with non-linear information in the picture with possible gaps. In this case, a longer focus (smaller FOV) gives more details on the same size of the matrix. Your client should prepare a compensation pixel to pixel table depends on the height over the terrain. This is a costly procedure, but efforts are worthy.

So, you can propose zero distortion, but you can't propose a known distortion. Let your client do the rest.
Understood. That's essentially what client did in photoshop. Manually corrected the lens distortion but they mentioned it was a pain. Hoping to smooth their workflow a bit. For my photogrammetry though, we are talking thousands of photos from various altitudes and positions can't run a correction for each photo. There is a bit of forgiveness in the process settings, you can select a lens correction type but less distortion and more detail is a definite plus on the model processing in both quality of model and processing time.

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
So, you can propose zero distortion, but you can't propose a known distortion. Let your client do the rest.
Ups! Typo mistake. I want to say "you CAN NOT propose zero distortion, but you can propose a known distortion."

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
That's essentially what client did in photoshop.
Change the client. ;) If no one will watch this photo, where is the reason to correct anything? Enough is to place some points in a new layer, the software is not important in this case, and after that to know distance between the pixels and in real life. This can be done with a remap table for your camera, which will be not used for another camera, doesn't matter the lens are the same type. A major problem in these cameras is not well centred and not very perpendicularly placed lens to the matrix. To have a 100% straight position of the lens is impossible with the materials, which are used for the holder, the pcb and so on.

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
Filename - YUN00008.jpg
ImageWidth - 4000
ImageLength - 3000
ImageDescription - \DCIM\100MEDIA\YUN00008.jpg
Make - YUNEEC
Model - CGO3+ 3.2.34(E)
Orientation - Top left
XResolution - 72
YResolution - 72
ResolutionUnit - Inch
Software - 3.2.34(E)
DateTime - 2021:10:03 10:50:26
YCbCrPositioning - Centered
ExifOffset - 322
ExposureTime - 1/679 seconds
FNumber - 2.80
ExposureProgram - Normal program
ISOSpeedRatings - 100
ISO Speed - 100
ExifVersion - 0230
DateTimeOriginal - 2021:10:03 10:50:26
DateTimeDigitized - 2021:10:03 10:50:26
BrightnessValue - 0
ExposureBiasValue - 0.00
MeteringMode - Average
FlashPixVersion - 0100
ColorSpace - sRGB
FileSource - DSC - Digital still camera
SceneType - A directly photographed image
CustomRendered - Normal process
ExposureMode - Auto
White Balance - Auto
SceneCaptureType - Standard
Contrast - Normal
Saturation - Normal
Sharpness - Normal

GPS information: -
GPSVersionID - 2.3.0.0
GPSLatitudeRef - N
GPSLatitude - 43 46 42.350159 (43.778431)
GPSLongitudeRef - E
GPSLongitude - 23 44 10.20336 (23.736168)
GPSAltitudeRef - Sea level reference
GPSAltitude - 50 m


So, the smaller FOV requests a higher altitude. The higher altitude means a great distance from the object and so on. The good news is that on a flat surface the picture is almost not distorted. This comes from the smaller FOV and so on. When I decide to prepare this camera my idea was to do some measurements but not in straight to the ground view. With a small FOV, this is only a wasted time.

The time in the EXIF is correct (GMT +2). The altitude and coordinates are not touched what means, they're almost correct...


Attachments

  • YUN00008.jpg
    6 MB · Views: 3
Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
From Google earth. To view the whole field altitude should be 500 meters. The details will be very small. Screenshot_2021-10-03-12-15-40.jpg

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria
I also thought about some filters, like ND4 with linear polarization. This is not impossible but should be some type of slide which is directly caught to the lens.

Joined
Sep 28, 2020
Messages
636
Reaction score
201
Age
53
Location
Kozloduy, Bulgaria

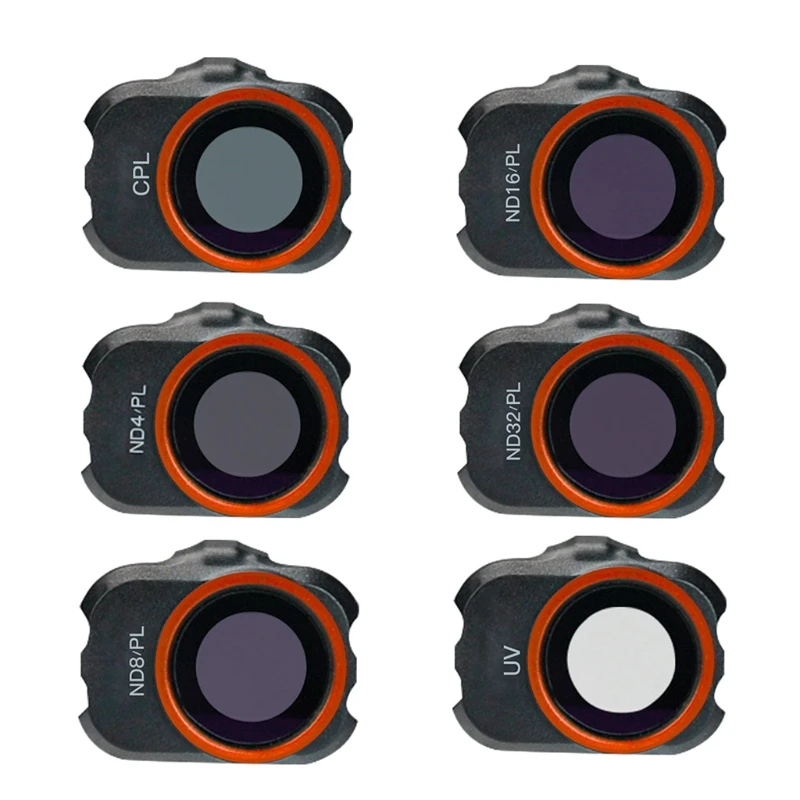

This one is a good candidate.


Cost-effective solution.

I'll order one ND4/PL to try. Results will be here, but after a month or so. From China delivery is not so fast.

Last edited:

WTFDproject

Moderator
Staff member
Premium Pilot
Joined
Oct 27, 2018
Messages
3,010
Reaction score
2,324
Location
North Carolina Piedmont, USA
Thanks Steve-- I was hoping someone might have a better way, such a pain to take it out set it up adjust and take card out walk back into the house put it on my PC connected to my big screen, check it go back out, put card back in cgo3+, reboot drone etc over and over. I guess a better question would be how far out should a target be for best overall focus performance? If I could get it dialed in as much as possible first would be easier I would imagine. Problem is finding a focus guide big enough to see clearly from a distance at that resolution. I could barely make out a stop sign at 50' on the ST 16. If I connected st16 to my big screen tv in the house, how far away would a focusing target need to be?
@Sure Bet Drone and Design,
I've been working with the same pain for the last few days. @Steve Carr and @DoomMeister led me to a way to see the image directly on a PC screen while I am actually turning the lens. I'm still working on ways to make the process more effective, but here is the start of it:

1.) Download and Install VLC media player if you don't already have it - Official download of VLC media player, the best Open Source player - VideoLAN

2.) Power on your camera and give it time to start flashing green.

3.) Connect your Computer's WiFi to the camera: (Camera WiFi password is1234567890).

4.) Open VLC.

5.) Click on "Media", then on "Open Network Stream..." :

6.) Type "rtsp://192.168.42.1/live" into the box (without the quote marks):

7.) Click on "Play":

8.) Focus on something 50 times the focal length in front of the lens (about 8 Inches for CGo3+) for a good general start: I'm sure that isn't perfect, but I'm still figuring things out.
Note this is NOT a high resolution photo from the camera SD card. It is a screenshot from the PC, which is only receiving the 720p signal from the camera WIFI.
(This particular target is from B&H Photo) https://static.bhphotovideo.com/explora/explora/sites/default/files/bandh-test-target.jpg

The above focus provided this appearance from 120 Ft altitude. (The camera focus has been improved since, but not checked in flight)
